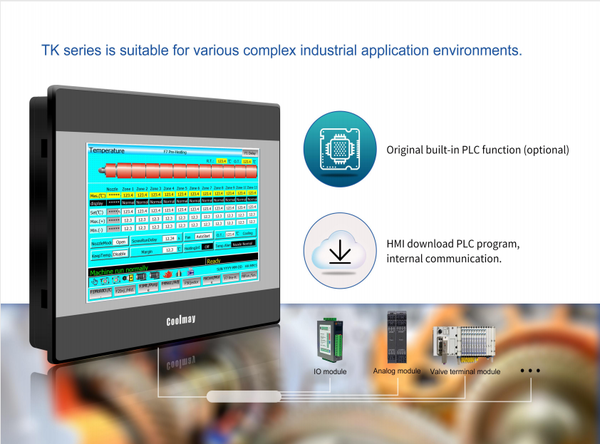

Màn hình HMI TK6070FH

MODEL

TK6070FH

SPECS

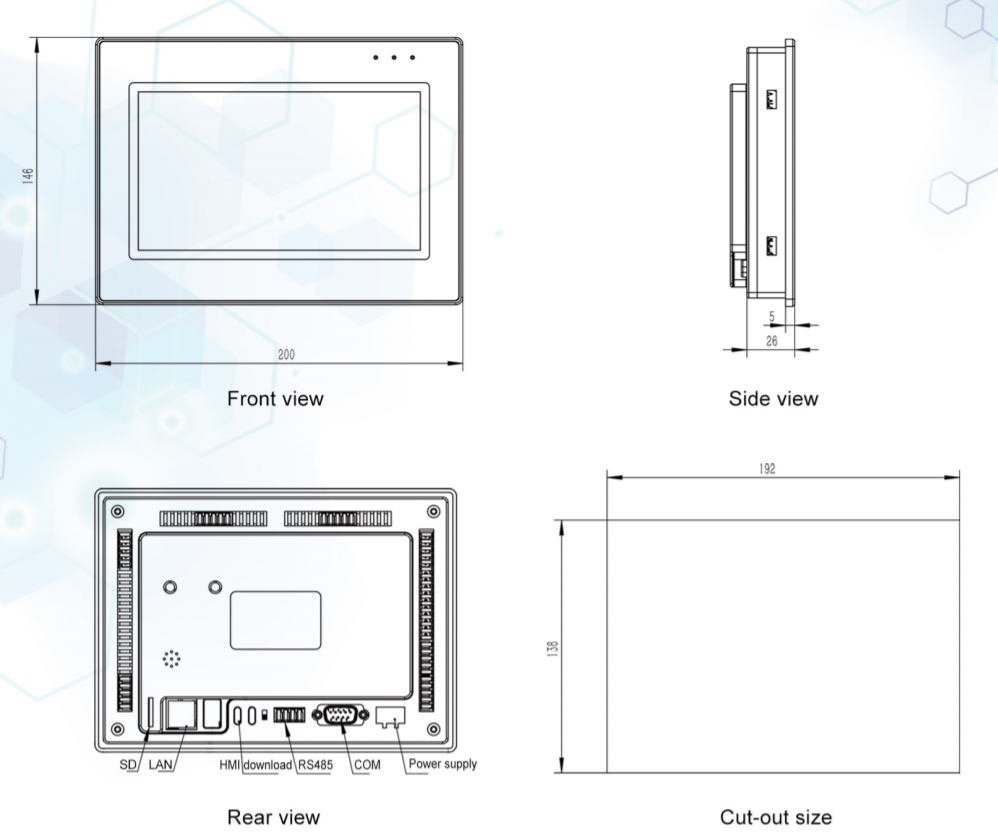

Dimension

200*146*36mm

Cutout size

192*138mm

Display size

154*87mm

Weight

Appox. 0.54 kg

DISPLAY

Display

7.0" TFT

Resolution

Standard: 800*480 pixels

Optional: 1024*600 pixels

Brightness

300cd/m2

Contrast ratio

400:1

Backlight

LED

Backlight time

60,000 hours

Display color

65536 colors

Touch type

4-wire resistive panel

STORAGE

ROM

NOR Flash 16MB

RAM

64MB (HMI when stores historical data, optional ferroelectric is required)

CPU

32bit CPU 408MHz

INTERFACE

Download port

Type-C, RS232, RS485

COM port

1 RS232, 1 RS485

Optional

1 WIFI (occupy default RS485 port)

Protocol

Support MODBUS, free port and common PLC communication Protocol

OTHER

Calendar

Yes

Input Voltage

12-24VDC±10%<150mA @ 24VDC

Consumption

107mA/24V

Protection Class

IP65 (front panel)

Temperature

Ambient environment: 0～50℃

Storage environment: -20～70℃

Humidity

20%～90% RH

Certification

CE

Software

CoolMay mView HMI programming software
